Licensing Management

License management use M-Files licensing method for vault applications. A separate license file (.lic file) is issued for a specific type of license.

Application licenses

Separate license files are required for:

  • MFSQL Connector VaultApp: MFSQL Connector (Data Exchange and Integration)

  • SQLDatabaseConnector: MFSQL Database File Connector

License types

  • Trial license:

    • 30 days only.

    • Expires on license end date.

  • Rental license:

    • Monthly

    • Expires on the end date of the rental.

  • Subscription:

    • 1 year maximum.

    • Expires on license end date.

    • License is issued for a specific M-Files license and requires the M-Files serial number to operate

    • License for a cloud installation does not include the M-Files license number.

    • License is issued for specific modules and is subject to the order of the license.

    • Only valid with designated M-Files server.

    • Separate license files are issued for Database File Connector and MFSQL Connector

  • Test and QA

    • A free test or QA license is available for a subscription license.

    • Follow the same rules as the subscription license

  • NFR license:

    Issued in terms of reseller agreement.

Installing the license

The license file is installed using M-Files Admin. Using the Applications window in M-Files Admin for the target vault, select the appropriate application for the license to be installed. image0

Click on License and browse to the license file. Validate the license details and accept. image1

Expiry notification

An email notification will be generated when the license expires within 30 days. The notification relies on the database mail setup for error management.

Warning

The will expiry on the license end date. Renew the license before the expiry date.

Check license validity

If the license is invalid, it will show the reasons on the license record. image5

To troubleshoot a license issue, start with manually checking the license validity with spMFCheckLicenseStatus

EXEC dbo.spMFCheckLicenseStatus
@Debug = 1

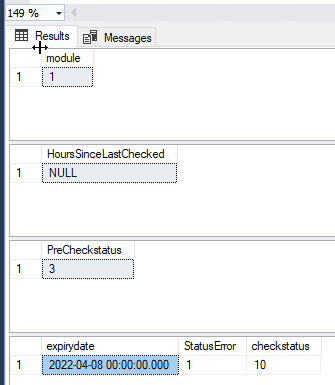

The result should look similar to the image below. If not, then email your result to support@lamininsolutions.com image2

Update expired or due to expire license

Contact us if the license is due to expire before the due date to prevent an outage of service. On receipt, apply the new license using M-Files Admin and the Applications window. image3

The license must be applied to each vault with a MFSQL Connector connection.

Check the configurator to validate that the license has been pulled through. If not, restart the vault. image4

Finally, check in SQL if the license is validated with spMFconnectionTest

Licensing trouble shooting

If the license is not validated then follow the next steps to identify a potential cause:

Check your email for any errors reporting. If you do not have DatabaseMail setup, then check the error log for more information on the error. image6

SELECT TOP 5 ErrorMessage, CreateDate FROM MFlog ORDER BY logid desc

Run the license check with parameter to reset the license and show debug.

EXEC dbo.spMFCheckLicenseStatus
@IsLicenseUpdate = 1,
@debug = 1

Check both the results and messages tabs in SSMS for further information

If the expiry date is not filled in, or is incorrect then report it to support. image7

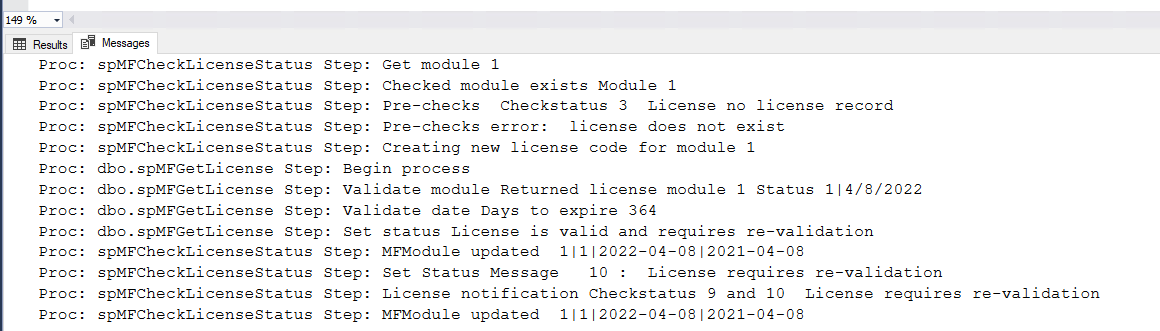

Check the messages for any obvious reasons that can be fixed. image8

Send screenshots of the result to support if still not resolved.
